IP66
Water and dust resistant
3.1kWh
top capacity
30-40lbs
weight
50.4V
nominal voltage
3400mAh
High longevity cells
120A
peak current
POWER SUPPLY

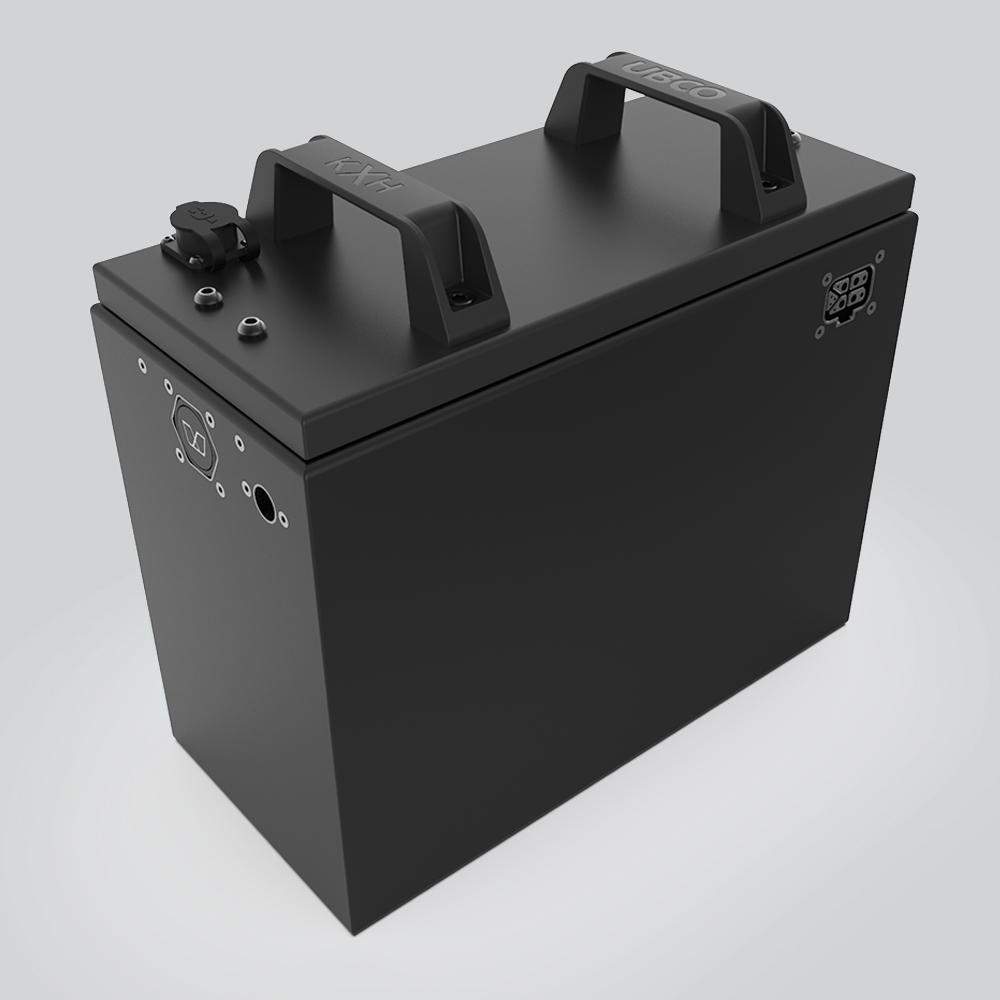

With an IP66 rating, the KXH Power Supply is fully water and dust resistant. A solid work-horse, the lithium ion battery powers the 2X2 with incredible capacity options.
IP66
Water and dust resistant
50.4V
nominal voltage
3.1kWh
top capacity
3400mAh
High longevity cells
30-40lbs
weight
120A
peak current
Compact yet powerful
The lithium ion power supplies weigh only 30-40lbs but deliver incredible capacity -- up to 3100Wh that can power your bike for up to 75 miles!
Durable inside and out
A solid work horse, the KXH Power Supply is fully water and dust resistant with an IP66 rating. The fully insulated sealed alloy case contains 3400mAh ultra high longevity lithium ion cells mounted into specially designed cell holders.
Compact yet powerful
The lithium ion power supplies weigh only 30-40lbs but deliver incredible capacity -- up to 3100Wh that can power your bike for up to 75 miles!
Durable inside and out
A solid work horse, the KXH Power Supply is fully water and dust resistant with an IP66 rating. The fully insulated sealed alloy case contains 3400mAh ultra high longevity lithium ion cells mounted into specially designed cell holders.
DUAL SAFETY SYSTEM
Active safety measures include the Battery Management System (BMS) that protects the battery from operating outside its safe operating area. Passive safety features include IP66 environmental rating, as well as numerous venting, fusing, pressure and flame protection measures.
active
safety features
passive
safety features
DUAL SAFETY SYSTEM
Active safety
KXH implements a dual safety system with active and passive safety. Active safety measures include the Battery Management System (BMS) monitoring its state, calculating and reporting data.
Passive safety
Passive safety features include IP66 environmental rating, as well as numerous venting, fusing, pressure, and flame protection measures.
Active safety
KXH implements a dual safety system with active and passive safety. Active safety measures include the Battery Management System (BMS) monitoring its state, calculating and reporting data.
Passive safety
Passive safety features include IP66 environmental rating, as well as numerous venting, fusing, pressure, and flame protection measures.
Built to last
UBCO developed KXH from the ground up for ruggedness and long life, from the physical engineering structure, to the hardware, firmware and software. We’ve increased cyclic longevity by at least 30% and improved the design for disassembly, creating a more durable product with a longer life and easier end-of-life management.
Global certification
Powering our globally homologated vehicles, KXH is UN38.3 certified to provide safe operation, use, and transit.
Design for disassembly
As well as delivering improved performance features, KXH offers better environmental performance. During the design, careful consideration was given to material choices and internal construction. Each component can be removed and isolated to enable easier maintenance and end of life disassembly. UBCO offers a take back programme for end of life extension and management.
Built to last
UBCO developed KXH from the ground up for ruggedness and long life, from the physical engineering structure, to the hardware, firmware and software. We’ve increased cyclic longevity by at least 30% and improved the design for disassembly, creating a more durable product with a longer life and easier end-of-life management.
Global certification
Powering our globally homologated vehicles, KXH is UN38.3 certified to provide safe operation, use, and transit.
Design for disassembly
As well as delivering improved performance features, KXH offers better environmental performance. During the design, careful consideration was given to material choices and internal construction. Each component can be removed and isolated to enable easier maintenance and end of life disassembly. UBCO offers a take back programme for end of life extension and management.
Born in New Zealand. Built Tough.
Dimensions
Length: 300mm | 11.8”
Depth: 150mm | 5.9”
Height: 290mm | 11.4”
Weight:
KX2.1: 14kg | 30.6lbs
KX3.1: 18kg | 39.6lbs
Power
KXH multiple voltage platform.
Nominal voltage: 50.4V
Continuous current: 80A
Max current: 120A
3400mAh ultra high longevity lithium ion cells.
Communication
CAN bus communication integrated. Fixed 100KB S-interface. 3.3V operation voltage remote frame.
Capacity
KX2.1: 2100Wh
KX3.1: 3100Wh

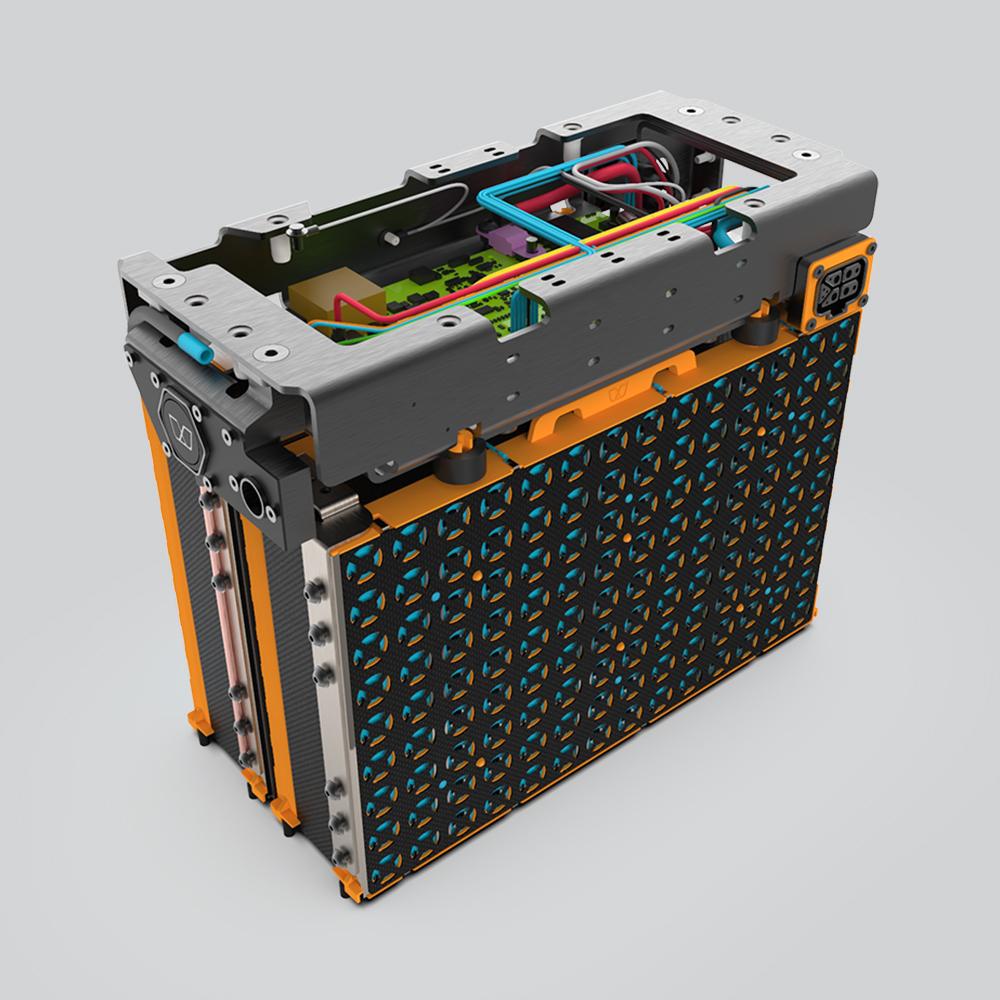

Structure
IP66 rated. Sealed alloy case structure. Flexible cell configuration. Waterproof connectors.
Charging
10A alloy fast charger. Charger detect disables the bike when charging.
Active safety
UBCO ‘Scotty’ battery management system (BMS). Real time performance and safety monitoring. Temperature monitoring.Intelligent (SOC). Over-current and over-voltage protection. Surge protection. Cell balancing. Plug detection. Overcharging protection.
Passive safety
IP66 rated sealed alloy enclosure. Cell level CID. Vented enclosure with venting pathways. 3400mAh high safety factor INR (LiNiMnCoO₂) 18650 lithium ion cells.
